TeZla Style Brainiac MK2 370Z Plastics
Upgrade your interior in 2 easy steps:
STEP 1
Selecting the right option:

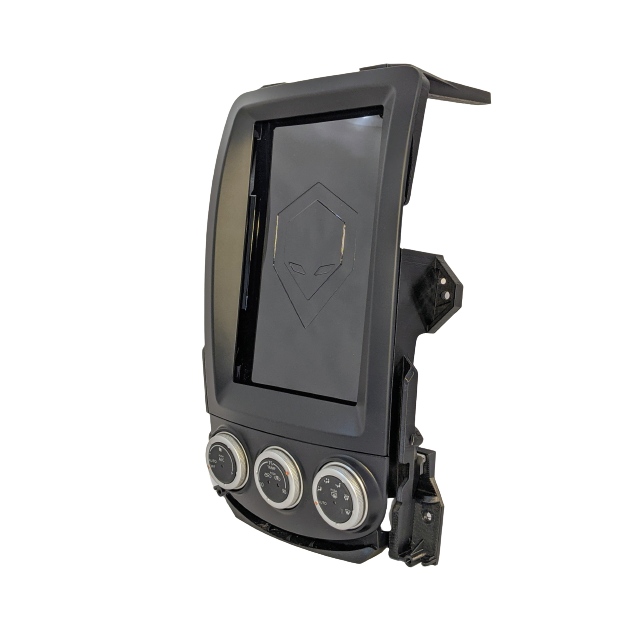

This option only includes the plastics for a OEM fit and finish (Tablet Sold Separately)
WHAT'S INCLUDED IN THE MK2 PLASTICS ONLY:
- 1 X Front magnetic tablet surround for a clean look
- 1 X Climate control surround

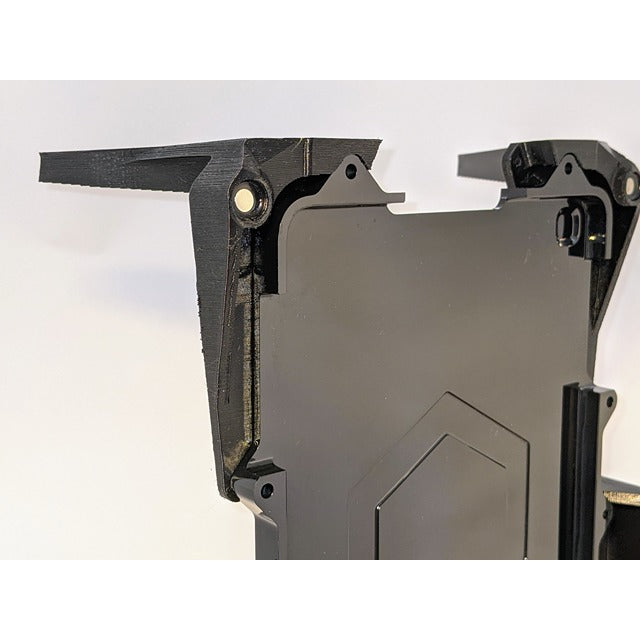

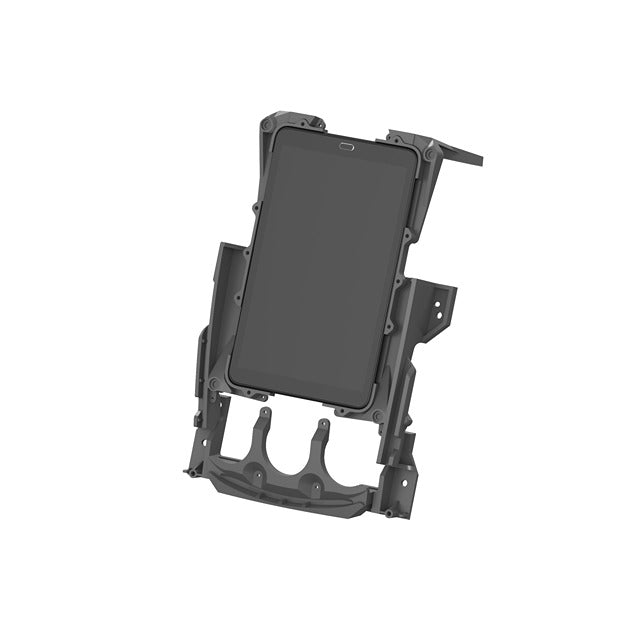

- 1 X Tablet cradle and support structure to hold your tablet securely in place
- Assembly Screws
- Zip-ties for Cables
Notes:
- MK2 Plastics Only kit does not include stereo electronics.

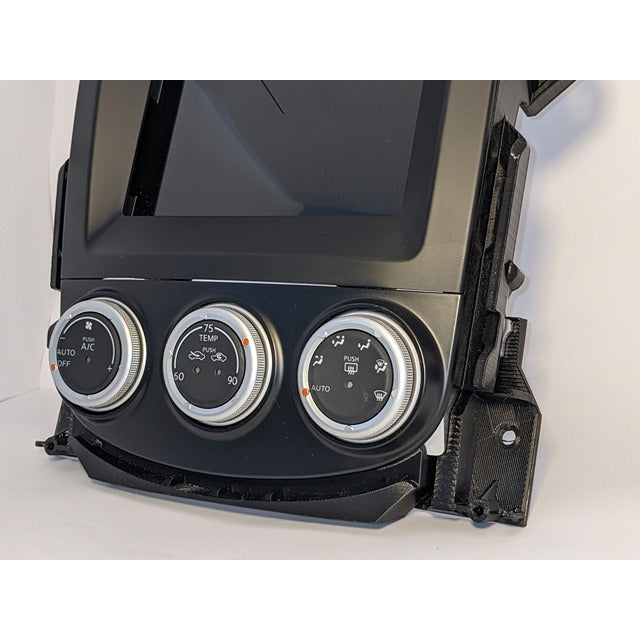

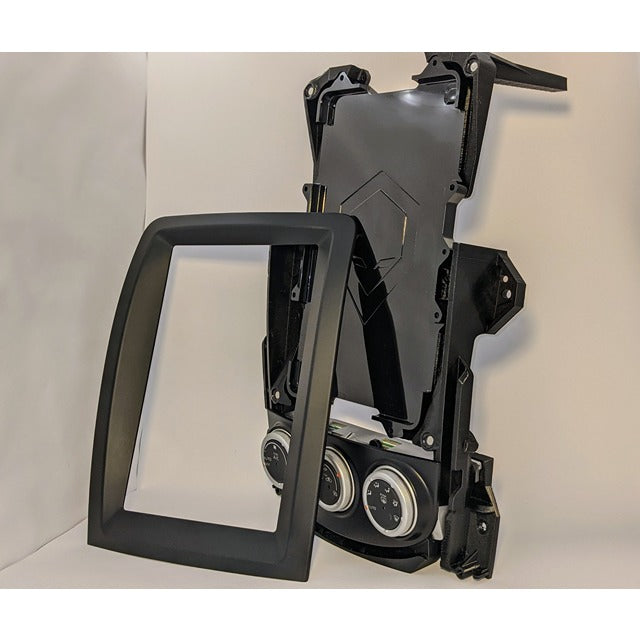

- Climate Control Pictured is not Included. Used only as a reference photo of an assembled kit
- Passenger facing surfaces are painted satin black to color match OEM stereo color
- Tablet is not included

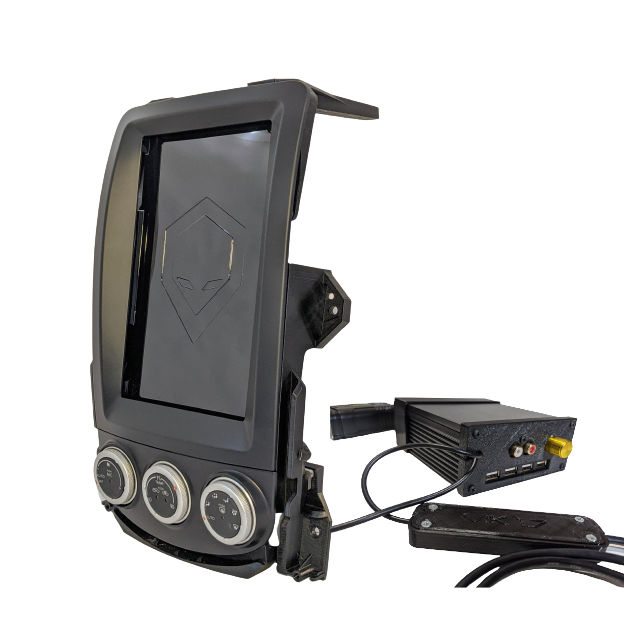

This option includes the MK2 Plastics + The MK1.7 Electronics!
The MK1.7 Electronics contains everything you need for a simple plug and play solution! Simply unplug your existing car stereo and plug in your MK1.7 Electronics.WHAT'S INCLUDED IN THE MK1.7 ELECTRONICS + MK2 PLASTICS:
- MK1.7 Electronics installation wiring diagram
- 100W 2-channel amplifier
- Factory stereo harness plug(s)
- 1 X 3.5mm right angle headphone to RCA cable
- 4 X Port USB hub for accessories
- 1 X Tablet USB-C charge and data cable
- 1 X USB auxiliary charge port
- 1 X Electrical Noise Filter
-
1 X Ground Loop Isolator for headphone audio
-
1 X Remote amp signal wire
- 1 X Grounding Cable
WHAT'S INCLUDED IN THE MK2 PLASTICS:
- 1 X Front magnetic tablet surround for a clean look
- 1 X Climate control surround
- 1 X Tablet cradle and support structure to hold your tablet securely in place
- Assembly Screws
- Zip-ties for Cables
Notes:
- The MK1.7 Electronics supports both BOSE and NON-BOSE equipped models.
- Tablet is not included

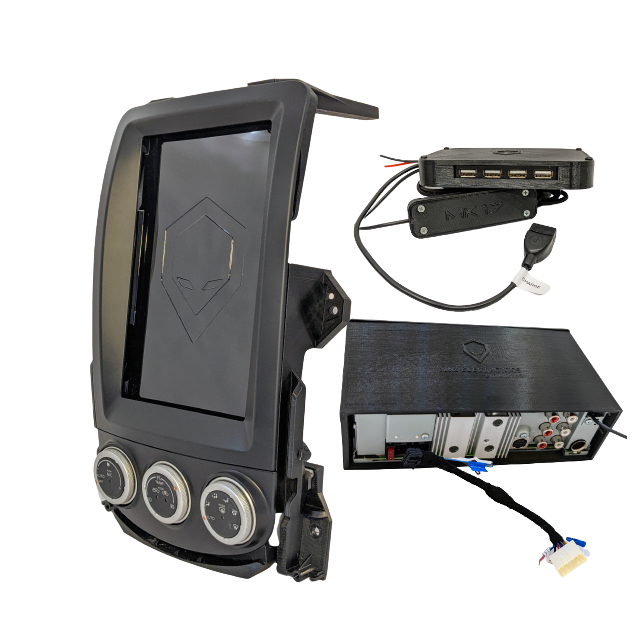

This option includes the Kenwood single din head unit and gives you the ability of using any USB accessories and keeping your tablet charged all at the same time by using the included MK1 Companion Kit.
WHAT'S INCLUDED IN THE MK2 ELECTRONICS BY KENWOOD WITH COMPANION:
-
MK2 Electronics by Kenwood
- Wiring harness pre-soldered & heat shrunk
- Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- 1 X Port USB hub for accessories
- 1 X Tablet charge and data cable
- 1 X USB auxiliary charge port
- 1 X 12 Volt Red Accessory Wire
- 1 X Ground Wire
WHAT'S INCLUDED IN THE MK2 PLASTICS:
- 1 X Front magnetic tablet surround for a clean look
- 1 X Climate control surround
- 1 X Tablet cradle and support structure to hold your tablet securely in place
- Assembly Screws
- Zip-ties for Cables
Notes:
- The MK2 Electronics by Kenwood supports both BOSE and NON-BOSE equipped models.
- Tablet is not included
- It is recommended you perform all volume and stereo adjustments prior to tucking it behind your Brainiac plastics
STEP 2
Choosing your tablet
Select the tablet you wish to use with our kit! Keep in mind to purchase the correct tablet as our kit has been designed to fit snug around the tablet, similar to a cellphone case.
- Samsung Galaxy S6 Lite 10.4" (2020/2022 Model P610,P615 / P613, P619)
- Lenovo Tab M10 HD (2nd Gen)
- Samsung Galaxy Tab A 10.1" (2019 models T510, T515, T517)
NOTE:
- Plastics kit does not include stereo electronics.
- Climate Control Pictured is not Included. Used only as a reference photo of an assembled kit
- Passenger facing surfaces are painted satin black to color match OEM stereo color
- Tablet is not included

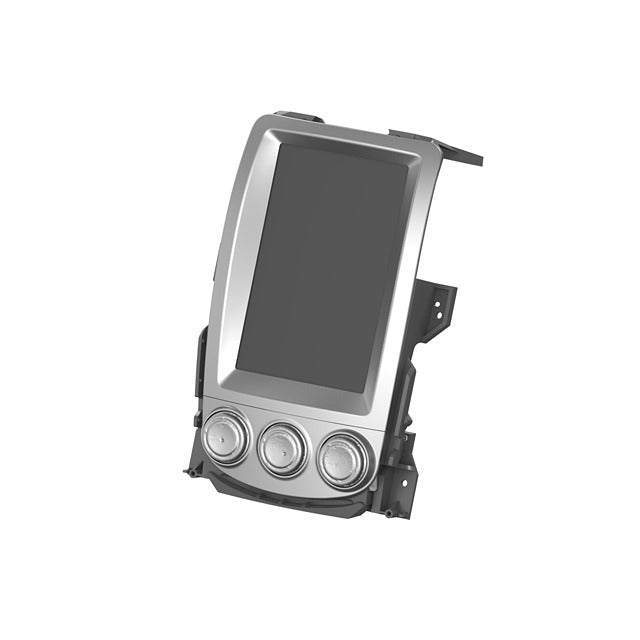

Introducing MK2
We've been listening to lots of feedback and have now created a version that is painted with an interior color matched satin black and produced as Plastic Injection Molded face plates.

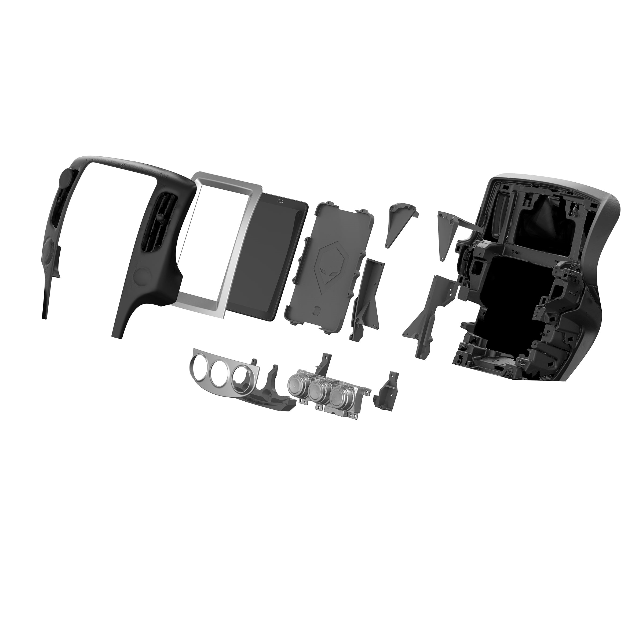

MK2 provides additional design updates complete with a sturdy magnetic face plate that allows for easy access to the tablet installed in your dashboard.
Installing Brainiac
We've pulled together a video to show the step-by-step process of installing the MK2 Brainiac plastics into your 370Z which is no more difficult than performing a aftermarket stereo installation.
Supported Tablets

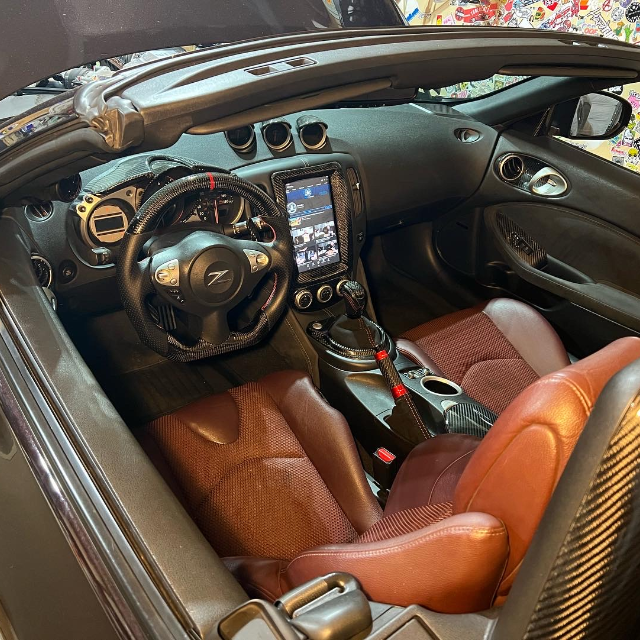

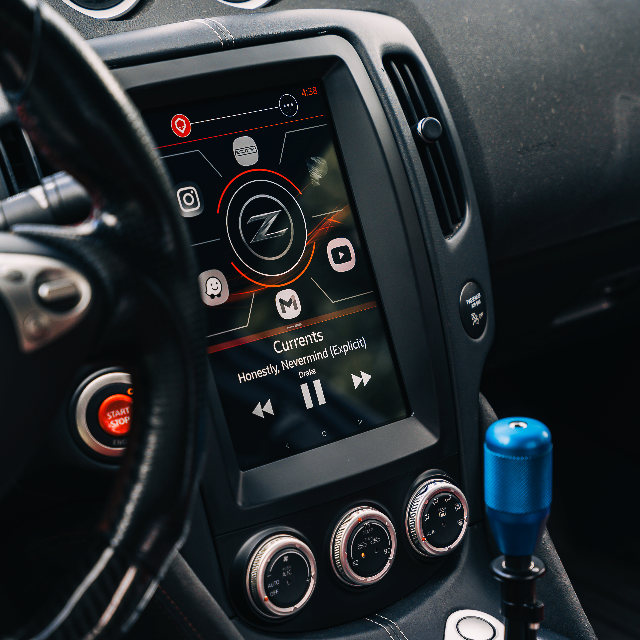

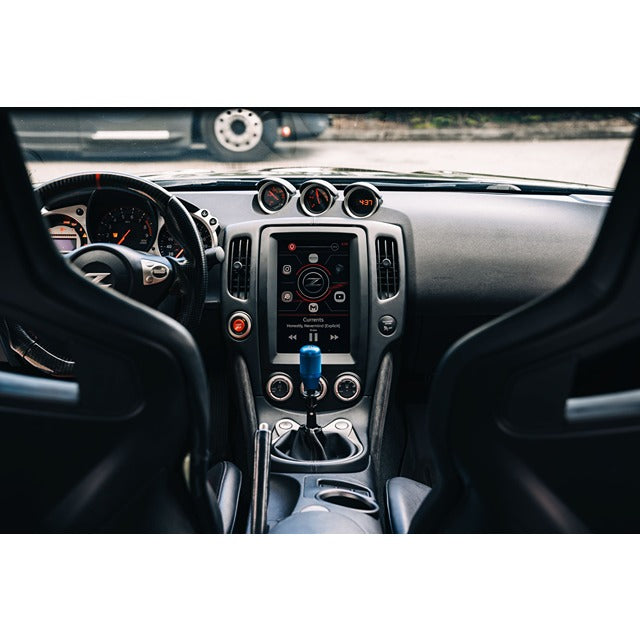

The Brainiac MK2 plastics for the Nissan 370Z have been designed to securely hold either a Samsung Galaxy Tab S6 Lite, Samsung Galaxy Tab A 10.1" (T510/T515/T517) or a Lenovo Tab M10 HD (2nd Gen) tablet in your dashboard creating a sleek factory integrated look.
This tablet is not included in the kit.
